2C injection molding machine

Location: Hanover (Application Center HOFZET®)

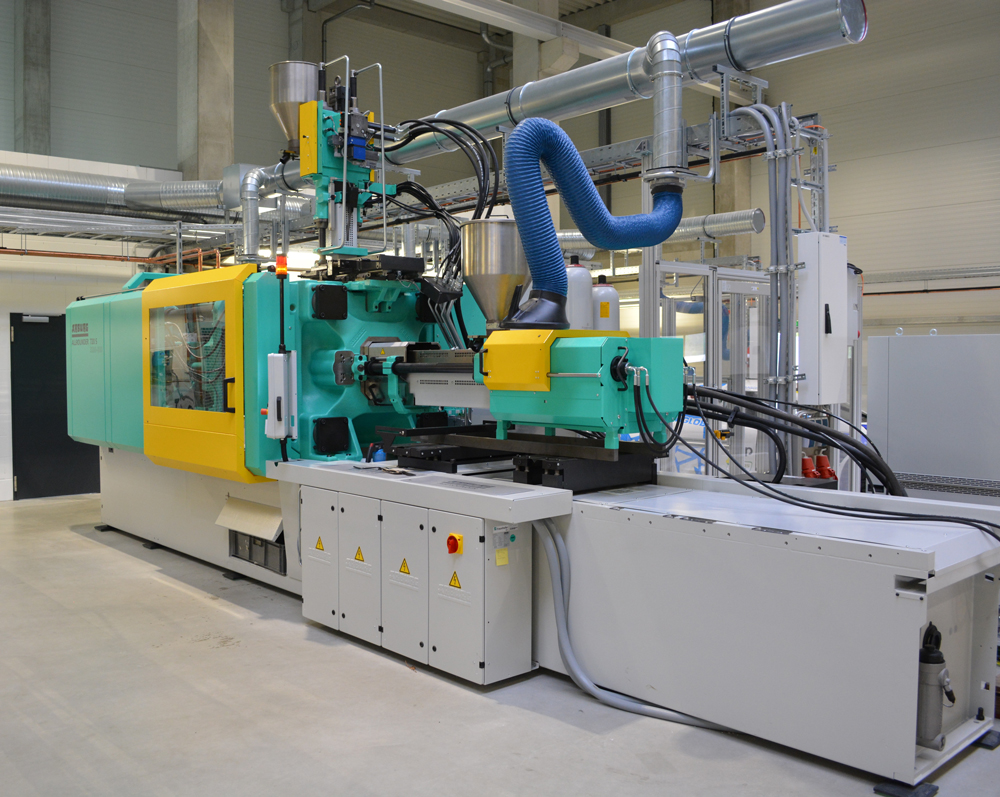

Das Foto zeigt eine mehrere Meter lange technische Anlage mit geschlossener Kammer und diversen Kabeln und Schläuchen.
© Fraunhofer WKI | Christoph Habermann
2C injection molding machine: Arburg ALLROUNDER 720 S Multi-component

With the aid of the 2C injection molding machine, we are able to directly combine two different materials with differing properties in one process step. In this way, complex multifunctional materials can be produced which are, for example, simultaneously stiff and flexible in order to fulfil conflicting requirements. Furthermore, we are able to produce lightweight components made of fiber composites. With these so-called “organic sheets“ we, for example, support the automotive industry in developing doors and tailgates based on renewable resources.

Amongst other things, the equipment contains a peel test specimen tool in accordance with VDI 2019, with variable wall thicknesses of between 0.5 - 6 mm in variothermal design. Through the variation of process parameters such as temperature and pressure, we are able to create ideal conditions for the realization of the greatest-possible adhesion of two different materials. For the process automation the 2C injection molding machine is equipped with a 6-axis jointed-arm robot.

Technical data

  • Distance between tie bars: 720 x 720 mm
  • Closing force: 3200 kN
  • Injection unit: 800 (horizontal) / 170 (vertical)
